GW 3000
Photo 1 en taille normale

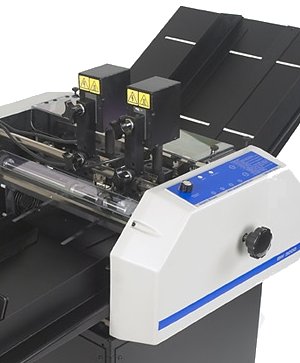

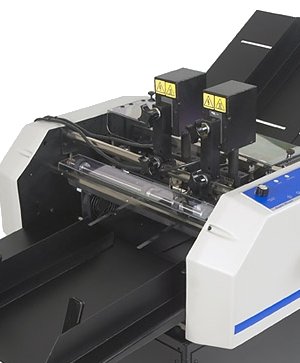

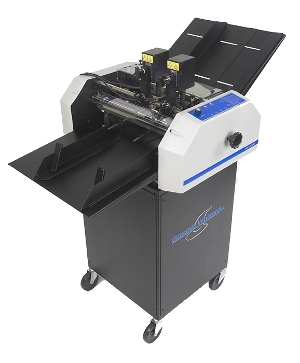

    Le GW 3000 1 Le GW 3000 2 Le GW 3000 3

  Prezzo : Contattateci

Descrizione del prodotto :
The GW 3000 is designed as a mid-volume, automatic number/perf/score/slit machine, ideal for the printer who does more numbering than can be efficiently accomplished on a hand fed machine. With a production rate of 3,000 standard size sheets/sets per hour, the "3000" makes short & easy work of mid-volume runs. Simple set up and ease of operation ensure quality results. Perforating, scoring, and slitting are done before the main rollers on depth controllable holders allowing for fast blade changes.



Caratteristiche tecniche
Specifications: Length 44" (1.12m)
Width 27" (0.69m)
Height 16" (.26m)
Weight 106lbs (48kg)
Speed: 3,000 sheets/sets per hour
(11" x 8.5" - A4)
Numbering: Solenoid operated drive of one or two numbering heads - 1 drive unit with 6 wheel gothic style reverse numbering head standard - Operational through 360º, lockable at any rotation - Consecutive, 2x, 3x, 4x actions - Standard heads drop 2 wheels, customization available - Optional condensed wheel style to 8 digits - Nº and letter prefixing available - Inked by reservoir pad, red and black supplied
Accessories: One accessory holder supplied standard - 12 tooth per inch perf blade and scoring blade supplied standard - Optional perf blades available at 2,4,6,8,12 TPI and MICROPERF - Optional slitting blade - Blades mounted on pressure adjustable holder, easily changeable - Optional stand
Impression Control: Electronically variable; able to put a good impression on bond without embossing, while also being able to crash up to 10-part sets!
Maximum amount of number positions: 1 number per head per sheet
Electrical: 120V/230V, 60/50Hz, 5.0 Amp
Stock Size: Minimum 3" wide x 5" long (7.6cm x 12.7cm) - Maximum 18" wide x 18" long (45cm x 45cm)
Crash Capability: Electronically variable by dial control - Crash number up to 10 part sets
Registration: 0.010" (0.25mm) accuracy
Maximum Number
of Heads: 2
Head Rotation: lockable in any position throughout 360 degrees


* 3,000 sheets per hour
* 1 number per head per sheet
* 1 or 2 Numbering Heads
* Tabletop model with automatic feed
* Crash Numbering Up to 10 Part Carbonless
* Feed sets UNGLUED or Glued side
* Create Snap Sets while Numbering
* Heads rotate & lock throughout 360 degrees
* Perforating Options 2, 4, 6, 8, 12 TPI & MICROPERF
* Accurate .010" Register
* Ability to Control Depth of Perf/Score/Slit
* Microprocessor controlled with forward and backward stepping for easy programming
* Completely upgradable to any other model without trading-in!
