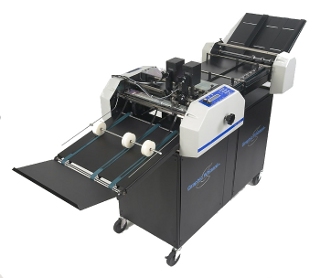

GW 12000
Photo 1 en taille normale

    Le GW 12000 1 Le GW 12000 2 Le GW 12000 3

  Prezzo : Contattateci

Descrizione del prodotto :
This fully automatic, pneumatic numbering system with double shafts (DS) gives users greater productivity and versatility. Now, a four-up job can be numbered and easily processed with only a single pass through the machine. More productivity equals more profit. With features similar to the "8000", the "12000" adds higher production speeds while maintaining register and accuracy. From the 30 inch-long register board, to the individually pressure adjustable perf/score/slit, to the tireless pneumatic heads, to the conveyor outfeed delivery, everything about the GW 12000 is designed for years of trouble-free operation. The GW 12000 offers all the above and more at a cost per feature and specification unmatched in the industry.



Caratteristiche tecniche
Speed: 12,000, 11 x 8.5"/A4 sheets per hour
Maximum Stock Size: 18" x 18" (45 cm x 45 cm)
Minimum Stock Size: 3"W x 5"L (7.6cm x 12.7cm)
Stock Weight: 12# - 12 point (45 - 250 gsm)
Impression Control: Electronically variable, crash up to 10-part sets
Electrical: 120V/230V, 60/50Hz, 5.0 Amp
Dimensions: Length: 68" (1.73m)
Width: 27" (0.69m)
Height: 46" (1.17m)
Weight: 325 lbs. (135 kg)
Number of job memories: 100
Maximum number of numbering positions: 100 per head per sheet
Maximum number of heads: 4
Drive Unit Type: Pneumatic; compressor required but not supplied
Head Rotation: Lockable throughout 360 degrees
Repeat Action: Consecutive, 1x, 2x, 3x, 4x
Numbering Heads: 6 digit reverse standard (with 2 drop) 8 digit condensed optional "No" and letter prefix available
Inking System: Ink pad with reservoir
Perforating Options: 2,4,6,8,12 TPI
MICROPERF Options: 42 or 72 TPI
Scoring blade options: wide (standard) or narrow
Slitting Blade: Optional
Stand: Included
Register: Microprocessor controlled to .010" (0.25mm)



* 12,000 standard-size sheets per hour
* 100-job memory to store numbering jobs
* Up to 100 numbering positions per head per sheet

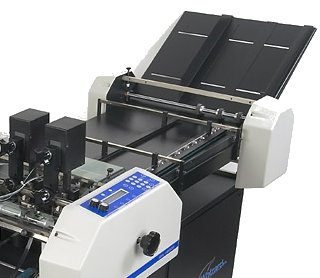

* Automatic feed; Optional "vertical" air feed available
* 1-4 PNEUMATIC numbering heads; compressor required but not supplied
* Heads rotate & lock throughout 360 degrees for perfect register

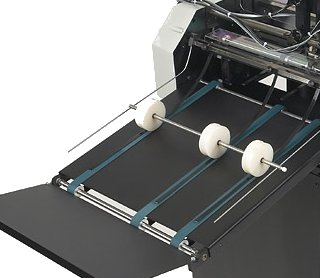

* 30 inch-long register board for easy set up & perfect register
* Floor model on castors; doesn't need dedicated floor/table space
* Crash number up to 10-part sets
* Feed sets from the UNGLUED or glued side
* Create "snap sets" while numbering
* Perforating options: 2,4,6,8,12 TPI
* Microperf options: 42 or 72 TPI
* Scoring options: wide (standard) or narrow
* Optional slitting blade available
* Ability to control depth of each perf/score/slit independently
* Accurate .010" register
* Microprocessor controlled with forward & backward stepping for easy programming
