GPM 540 A
Photo 1 en taille normale

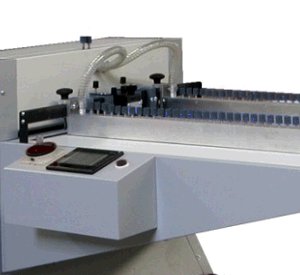

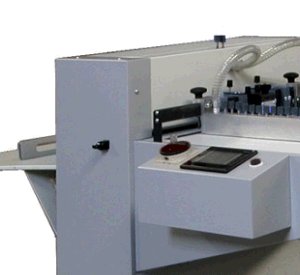

    Le GPM 540 A 1 Le GPM 540 A 2 Le GPM 540 A 3 Le GPM 540 A 4

  Prezzo : 22000.00 € (prezzo pubblico indicativo)

Descrizione del prodotto :
Efficient automatic creasing – perforating machine with suction feeding and maximum working width 540 mm. The working speed can reach up to 10.000 sheets/hour. The sheets are taken from paper reservoir which can be continuously supplied. The parameters of operations are entered through lucid touch display. Except creasing and perforating bars similar to GPM 450 SA this machine is also equipped by useful longitudinal perforation.

* Suction feeding allowing digital print
* High quality “anvil” perforation
* Three sizes of creasing bars
* Exchangeable cassettes for optional longitudinal perforation or creasing
* Large working desktop – 540 mm
* Speed up to 10.000 sheets per hour
* Automatic searching of middle of the paper

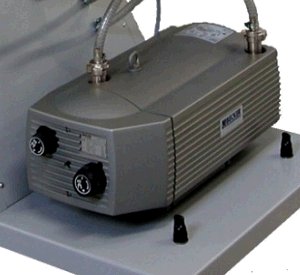

* Precise Japanese electronics by Omron, German compressor Becker
* Up to 99 pre-set application can be stored in programme memory
* Touch display
* Possibility of continuous loading of paper
* 8 languages (English, German, French, Spanish, Italian, Russian, Greek and Czech)



Caratteristiche tecniche
Max. working width/lenght : 540 mm / 740 mm
Max. weight of paper : creasing 60 - 600 g/m2, perforating 80 - 250 g/m2
Width of crease : 1,0 / 1,3 / 1,6 mm
Max. numbers of creases : 20
Min./Max. distance between creases : 2/500 mm
Max. speed : 10.000 sheets A4 / hour
Dimensions : * l=1090 mm; * w=780 mm; * h=1110 mm
Packing size : * l=1200 mm; * w=800 mm; * h=1150 mm
Weight : * nett 270 kg; * gross 290 kg
Voltage / Frequency : * 400 V / 50 Hz
