KB2000
Photo 1 en taille normale

    Le KB2000 1 Le KB2000 2 Le KB2000 3 Le KB2000 4

  Prezzo : 12654.00 € (prezzo pubblico indicativo)

Descrizione del prodotto :
A unique slitting and fanning device allows a high levelled contact of glue to all sheets to be bound.

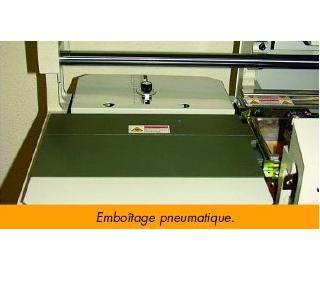

The sheets to be bound are held tight in the clamp of the binding carrier by a pneumatic drive system. The clamp moves across the slitting/fanning device (on/off selectable) and the glue assembly into the cover clamp section. A pneumatic driven cover attachment and side pressing finishes the book with a professional appearance.

The cover attachment can be set up in relation to thickness of spine and substrate of cover. The pneumatic system is silent running .

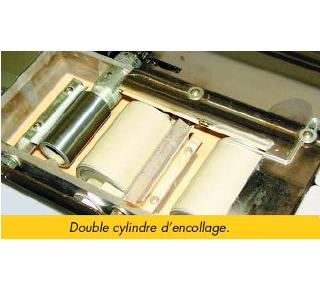

Professional multi-layer glue assembly including reverse rotating smoothing roller. Up to 320 books can be produced per hour.

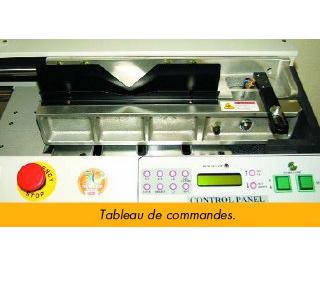

Through a central operator panel the system is controlled and operated. By using a "Start + Go" button the binding process runs fully automatically. A smoke exhauster is integrated and can be connected with a flexible hose to any outlet.





Forniture
Copertine Termiche:
- CopyLux Series
- Rigid Series
- Popset Series
- Grain Leather Series
- Chromolux 250g Casing cover
- Chromomat 250g Casing cover

Caratteristiche tecniche
- Max. Thickness : 60 mm
- Max. Width : 320 mm
- Spine Thickness: 3 sheets to 60mm
- Spine Length: 60mm to 310mm
- Book Size max: 310 (spine) x 320mm
- Dimensions : 1280(L) x 370(W) x 1100(H) mm
- Weight : 170 kg
La termorilegatura con dorso piatto a libro, che cosa è ?

La rilegatura con dorso piatto a libro è un sistema di rilegatura universale. La particolare miscela di colla e la speciale tecnica di estrusione assicurano al fascicolo rilegato una lunga e solida tenuta dei fogli. La colla presente sulle cartelline viene scaldata dalla macchina e consente alle pagine di rimanere unite a fascicolo.

Questo sistema assicura una rilegatura professionale e pratica, pronta da archiviare. La rilegatura è duratura e solida. Potete cosi maneggare i vostri documenti tante volte quanto lo volete senza nuocere alla loro tenuta


Forniture


Serie CopyLux

Designazione Codice - Rif. Originale Condizionamento Scatola Prezzo in € IVA escl. Colore Quantità Carrello


Alto pagina



Serie Rigida
In diverse dimensioni:
Taglia 10: 25-55 fogli di 80 Gr
Taglia 14: 55-85 fogli di 80 Gr
Taglia 16: 85-115 foglie 80 Gr
Taglia 20: 115-145 foglie 80 Gr

Designazione Codice Condizionamento Scatola Prezzo in € IVA escl. Colore Quantità Carrello


Alto pagina



Serie Popset

Designazione Codice - Rif. Originale Condizionamento Scatola Prezzo in € IVA escl. Colore Quantità Carrello


Alto pagina



Serie LeatherGrain

Designazione Codice Condizionamento Scatola Prezzo in € IVA escl. Colore Quantità Carrello


Alto pagina



Copertine Chromolux 250 Gr

Designazione Codice - Rif. Originale Condizionamento Scatola Prezzo in € IVA escl. Colore Quantità Carrello


Alto pagina



Copertine Chromomat 250 Gr

Designazione Codice - Rif. Originale Condizionamento Scatola Prezzo in € IVA escl. Colore Quantità Carrello


Alto pagina
