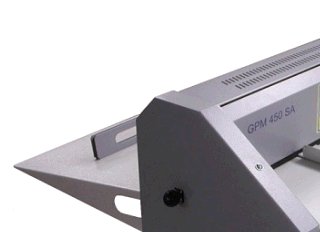

GPM 450 SA
Photo 1 en taille normale

    Le GPM 450 SA 1 Le GPM 450 SA 2 Le GPM 450 SA 3 Le GPM 450 SA 4

  Prezzo : 4900.00 € (prezzo pubblico indicativo)

Descrizione del prodotto :
The semiautomatic creasing – perforating machine with programmable control and working width 450 mm. Manual paper input, paper move provided by motor. Creasing enables high-quality fold of digitally printed paper. By turning the upper (complete) creasing bar behind the perforating one and after turning over the lower combined bar, it is possible to carry out perforation. Waste-free perforation facilitates detaching of paper.

* Heavy duty metal construction
* Designed for both creasing and perforating
* Useful also for creasing laminated documents
* Up to 5 pre-set application can be stored in programme memory
* High-quality “anvil” perforation
* Automatic searching of middle of the paper

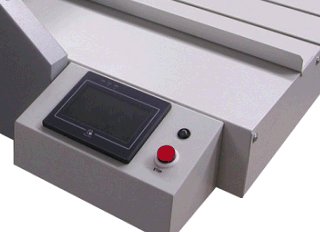

* Touch display
* Three sizes of creasing bars

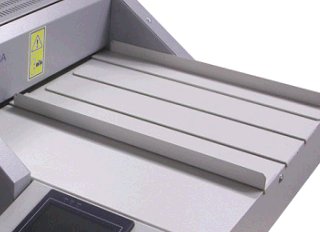

* Large working desktop (up to A2 format)
* 8 languages (English, German, French, Spanish, Italian, Russian, Greek and Czech)





Caratteristiche tecniche
Max. working width/lenght : 450 mm/ 999 mm
Max. weight of paper : creasing 400, perforating 250 g/m2
Width of crease : 1,2 / 1,5 / 1,8 mm
Max. numbers of creases per sheet : 15
Minimum distance between creases : 2 mm
Dimensions : * i=1200 mm; * w=640 mm; * h=300 mm
Packing size : * i=700 mm; * w=740 mm; * h=400 mm
Weight : * net 52,5 kg; * gross 56 kg
Voltage / Frequency : * 230 V / 50 Hz
